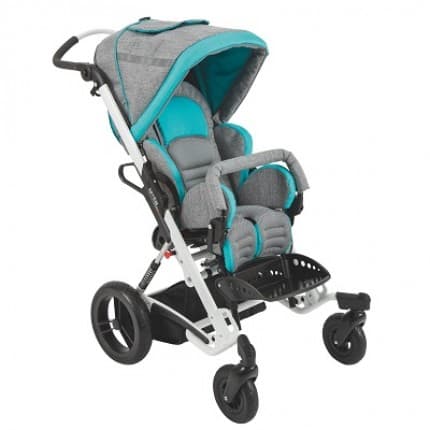

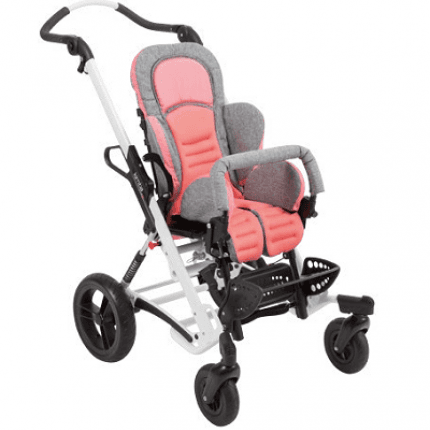

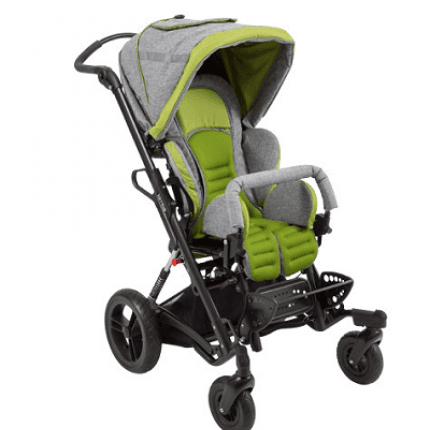

Kimba Neo
Brand: Ottobock
Categories:
The Kimba family offers numerous combination possibilities. With the appropriate mobility base for indoor or outdoor activities, at home or on the go, in the home, during excursions in the city or on uneven terrain. your child enjoys optimal safety and support in all of these situations.
The Kimba seat was developed with a broad range of options for adaptation to the individual needs of each child. It offers numerous easy-to-use adjustment possibilities for different sitting positions.
Options
• Grabrail / padding for grabrail
• Coloured inlays
• Seat depth reducer
• Back support angle limiter
• Angle-adjustable leg support, also for short
lower leg lengths
• Adjustable head supports
• Numerous straps
• Lateral supports
• Lumbar support padding
• Neck support
• Wedge cushion for sitting positioning
• Broad range of accessories for foot and leg positioning
Size 1
Seat width (min. / max.): 200 – 300mm
Seat depth with seat depth reduction from: 140 mm 190 – 310 mm
Back support height, shortened: 315 – 455 mm
Back support length: 410 – 610 mm
Back support angle: 80° to 180°
Seat tilt: -10° to 40°
Lower leg length (min. / max.): 190 – 310 mm
Lower leg length, shortened (optional) from: 120 mm
Folding size (L x W x H): 580 x 370 x 420 mm
Weight of seating unit: 7.5 kg
Max. load: 40 kg
Size 2
Seat width (min. / max.): 260 – 350mm
Seat depth with seat depth reduction from: 240 – 400 mm
Back support height, shortened: 390 – 560 mm
Back support length: 560 – 700 mm
Back support angle: 80° to 180°
Seat tilt: -10° to 40°
Lower leg length (min. / max.): 200 – 370 mm
Lower leg length, shortened (optional) from: 120 mm
Folding size (L x W x H): 590 x 430 x 580 mm
Weight of seating unit: 9.5 kg
Max. load: 40 kg
