ZUM-AP & SP
Categories:

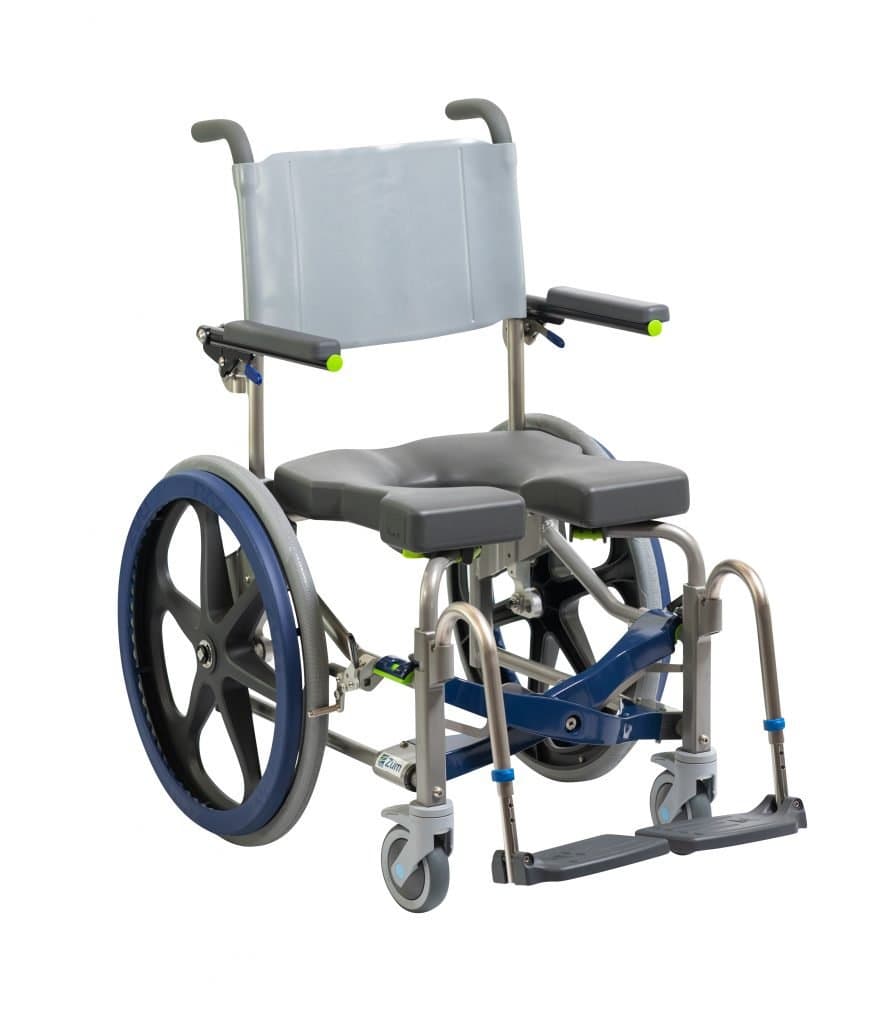

The Züm-AP/SP is the first folding frame mobile shower commode chair that offers the strength and rigidity that you would expect from a premium product.
The unique cross-brace frame allows the Züm to fit over a toilet with optimal alignment of the aperture and the toilet bowl. Standard features include:
- Crossbrace with low pivot point and forward arch allows Züm to be positioned fully over the toilet
- Crossbrace lock-down system and rear seat support tube provide unparalleled rigidity
- 18” wide aluminium frame – fits over most standard toilets
- Unrestricted front and side access
- 17 standard seats + custom (with IPAS)
- Removable back support
- Flip-up arm supports with optional lock kit
- 22” or 24” wheels available for the Züm-SP model
- 2” fore/aft rear wheel adjustment (fine tunes centre-of-mass position for SP model)
- Quick-Release Axles are standard
- BYOW (Bring Your Own Wheels) custom axle receivers to allow the use of the client’s own wheelchair wheels
| SPECIFICATIONS | ZUM-AP | ZUM-SP |
|---|---|---|
| WEIGHT CAPACITY | 350 lbs (160 | |
| kg) | 350 lbs (160 | |
| kg) | ||
| OVERALL WIDTH
| Frame Open -23.25” (59 cm)
Frame Folded - 11” (28 cm)
Frame Folded - 7.5” (19 cm) – (back assembly removed) | Frame Open - 25.25” (64 cm)
Frame Folded - 13” (33 cm)
Frame Folded- 7.5” (19 cm) (back assembly and wheels removed) |
| OVERALL LENGTH (with footrest) | 34” (86 cm) | With Standard Footrests - 40” (102 cm) with 22” (56 cm) wheels
For SP, Rear wheels in centre position - 41” (104 cm) with 24” (61 cm) wheels |
| SEAT WIDTH
(commode seat) | 18" (46
cm) | 18" (46
cm) |
| | | |
| CLEARANCE HEIGHT UNDER SEAT | With pan brackets - 17.25” (43 cm)
Without pan brackets- 17.75” (45 cm) | With pan brackets - 17.25” (43 cm)
Without pan brackets - 17.75” (45 cm) |
| ARMREST HEIGHT ABOVE SEAT | 8" (20cm) | 8" (20cm) |
| SEAT-TO-FLOOR HEIGHT | 21.5" (55cm) | 21.5" (55cm) |
| PRODUCT
WEIGHT (with footrests) | 44 lbs (20 kg) | 57 lbs (26 kg) |
| FRAME AND HARDWARE MATERIAL | Base Frame - AluminiumBack frame and Footrests - Stainless SteelHardware - Stainless Steel | Base Frame - Aluminum
Back frame and Footrests- Stainless Steel
Hardware - Stainless Steel |
