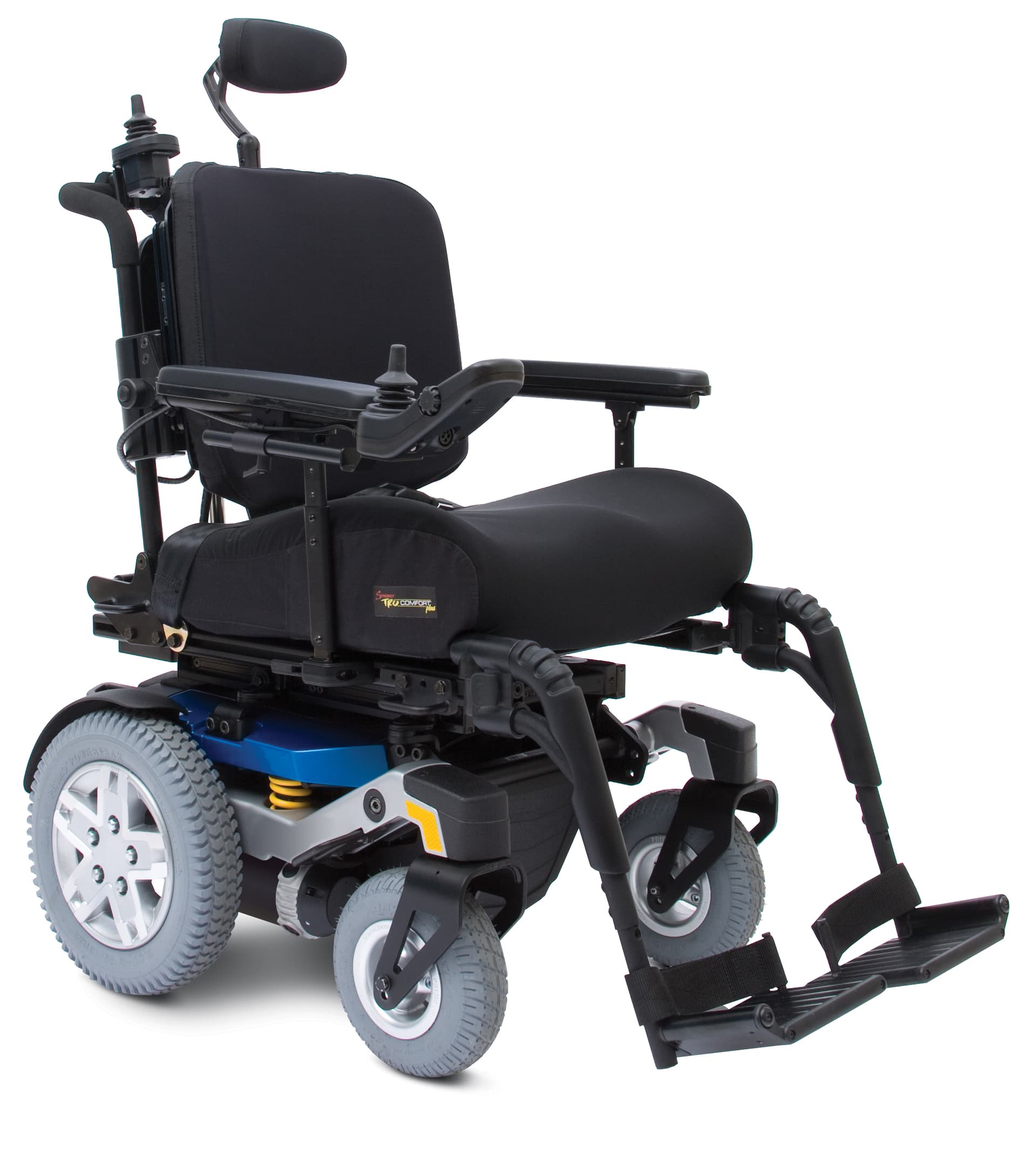

Quantum Rehab R44
Brand: Quantum Wheelchairs
Categories:
The Quantum R44 rear-wheel drive power chair features innoan vative design that provides exceptional outdoor performance and handling while maintaining outstanding tight space maneuverability. The R44 accepts a complete range of rehab seating and electronics options.
Weight Capacity: 300 lbs. (136 kg)
Maximum Speed: Up to 6 mph (9.6 km/h)
Ground Clearance: 3.25 in. (8.25 cm) from motor
Turning Radius: 35.75 in. (90.8 cm) with front riggings
Overall Size: Length: 47 in. (119 cm) with front riggings; 36 in. (91 cm) without front riggings
Width: 29.6 in. (75 cm)
Drive Wheels: 14 in. (35.5 cm), pneumatic or solid available
Caster Wheels: Front: 9 in. (23 cm) pneumatic
Suspension: Active-Trac ATX with Long Trail Arm
Range: Variable up to 15.5 miles (25 km)
Brakes: “Intelligent Braking” electronic regenerative, disc park brake
Drivetrain: Two motor, rear-wheel
Batteries: Two 12-volt, deep-cycle Group 24 batteries
Battery Charger: 8-amp, off-board
Component Weights: Base: 129 lbs. (58.51 kg)
Batteries: 51 lbs. (23.13 kg)
Maximum Allowable Incline: 7.5° (13.2%)
Maximum Angle Capacity: 9° (15.8%)
Maximum Obstacle Climbing Ability: 2.3 in. (6 cm)
