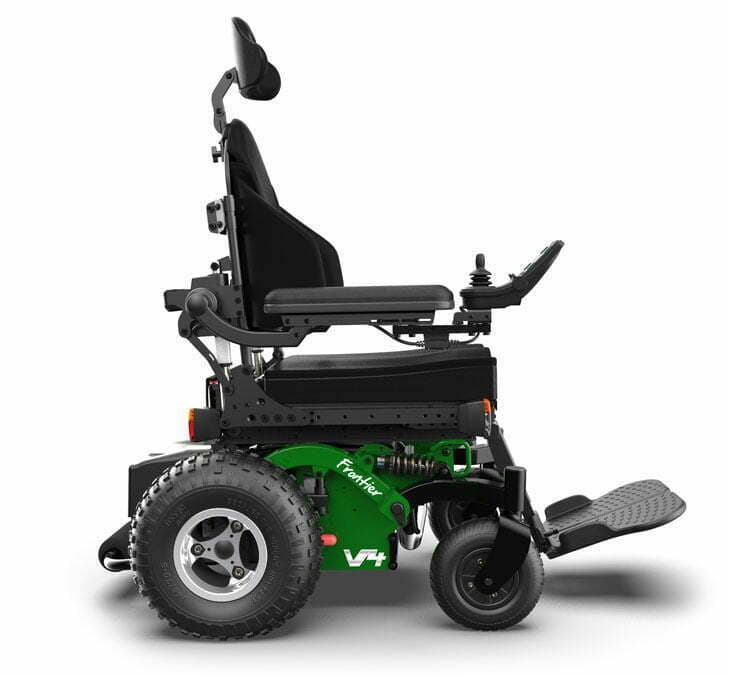

Magic Mobility Frontier V4 Rear Wheel Drive
Brand: Magic Mobility Wheelchairs
Categories:
A powerchair for those who know what they want.
The thinking person’s powerchair, the V4 Rear Wheel Drive (RWD) is designed for those who are asking themselves the question of getting around their community or even heading off-road, as well as indoors. With the capability to swap your off-road tyres to hybrid tyres to give you the best of both worlds for your power chair to suit your lifestyle!
| Features | Specifications |
|---|---|
| *Length of base | 995mm (*legrest choice and seating size may increase chair length/width) |
| *Width of base | 710mm (670mm with Hybrid wheels) |
| Floor to top of seat pan height | 435mm |
| Turning circle (radius) of base | 520mm |
| Weight limit | 182kg (400lbs), 155kg (340lbs) with lift and/or tilt |
| Top speed | 10kph (6.2mph) |
| Motors | 68Nm Torque, 800W, Gear in Line |
| Motor IP Rating 54 (splash resistant but not waterproof) | The wheelchair has electric motors and must not be driven through water, into rivers, creeks and the sea |
| Wheels - Off-road | 14" black (note silver rims not available in the USA) |
| Wheels - Crossover | 14"(5.30/4.50/6) black or grey (pneumatic only) |
| Wheels - Hybrid | 14"x3" black or grey (Solid or pneumatic) |
| Castors | Ø220mm (2.80/2.50-4), black or grey (solid or pneumatic) |
| Batteries | Gel |
| Controller | Penny & Giles with LCD display (R-net) or LED option |
| Legrest options | Centre post, manual elevating, power/manual elevating swingaway, centre mount power elevating |
| Backrest and seat | Adjustable seat pan (12” deep to 24” wide) to fit MPS / Rehab or aftermarket seating options |
| Tie down points | Crash test compliant |
